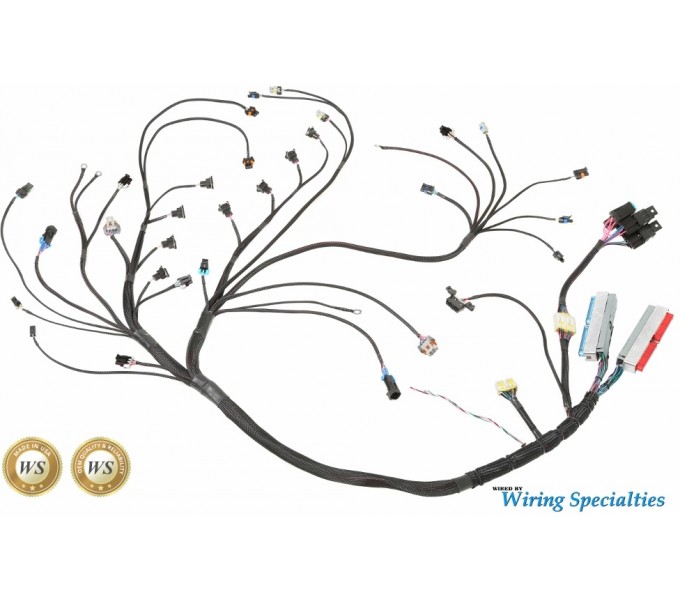

LS1 Wiring Harness for BMW E30- PRO-SERIES
Plug and play ledningsnett for og bytte til LS1 motor i BMW E30.
Støtter Følgende motorer
- Alle LS1 fra 1999-2002 Camaro, Firebird, GTO, Corvette
- Alle Vortec motorer fra 1999-2007 (LM4, LM7, LQ4, LQ9, LR4, L33, L59)
- Støtter motorer med DRIVE BY CABLE og T-56 girkasse
Passer:
BMW 3 (E30) 316i 1982 - 1987
BMW 3 (E30) 318i 1982 - 1991
BMW 3 (E30) 320i 1987 - 1991
BMW 3 (E30) 325i 1985 - 1991
BMW 3 (E30) M3 1986 - 1991
Art.nr: 136046468
Type LS1 Motor
Type LS Girkasse
Turtallskalibrering
Flash tuning
Adaptere
Luftmengdemåler/MAP sensor
Oksygen sensor/lambda sonde
PRO-SERIES HARNESS SPECS
- Plug and play.
- Constructed using OEM connectors and seals.
- Made with high temp TXL wire (-40C to +125C operating temperature) with adhesive shrink tubing.
- Wrapped in lightweight nylon loom with -94C to +257C operating temperature.
- Includes built in charge harness and improved grounds.
- Retains OEM fans, wipers, oil pressure sensor and coolant sensor (requires adapters).
- Works with OEM dash instruments gauge cluster.
Note: requires the BMW 20-pin fuse box connector to be sent in to complete the project.
Note: Coolant and Oil sensor adapters retain the use of factory BMW (OBD1) Oil Pressure and Coolant Temp cluster functionality.
Note: LS2 and up engines, additional accessories and other injector types are subject to additional fees. - SUPPORTED LS PCM SERV CODES
- 09354896, 12200411, 12586242
- SUPPORTED VORTEC PCM SERV CODES
- 09254896, 12200411, 12576106, 12586242, 12586243, 12597191, 12583560, 12583561, 12596679, 12589463
