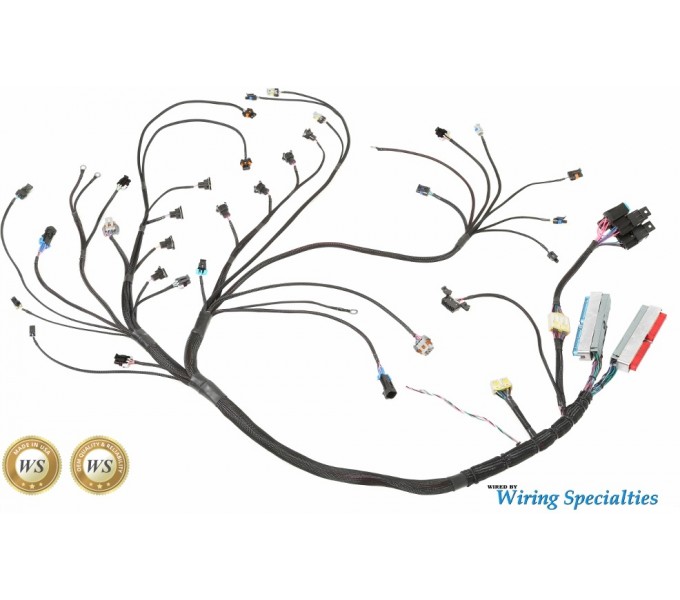

LS1 to Datsun 240Z Wiring Harness - PRO SERIES
Plug and play ledningsnett for deg som vil sette en LS1 motor i en Datsun.
Her er alt klart til montering, alt du behøver og gjøre er og velge ut de riktige kontaktene i listen.
Passer følgende motorer
- Alle LS1 fra 1999-2002 Camaro, Firebird, GTO, Corvette
- Alle Vortec motorer fra 1999-2007 (LM4, LM7, LQ4, LQ9, LR4, L33, L59)
- Støtter alle motorer med DRIVE BY CABLE og T-56 girkasse
Passer:
Datsun 240Z L24 1970 - 1973
Art.nr: 136046607
Type LS1 Motor
Type LS Girkasse
Flash tuning
Luftmengdemåler/MAP sensor
Oksygen sensor/lambda sonde
PRO-SERIES HARNESS FEATURES
- Wiring for OEM fans, wipers, oil pressure sensor and coolant sensor (requires oil pressure and coolant adapters).
- A/C Wiring is available as an option. Please note that adding A/C to an LS1 Datsun is not easy and will require custom lines and sensor installation. Wiring Specialties will provide a wiring sub-harness needed for operating the A/C system ONLY.
- Speeedometer calibration (requires SGI-5 unit).
- Retains OEM tachometer functionality.
- Wiring and relays for Dual OEM LS fans.
- Wiring for Oil pressure, alternator dummy light, reverse lights, reverse lockout and skip-shifts lockout.
- Works with OEM dash instruments gauge cluster.
- Built-in charge harness for alternator charging.
- OBD2 Consult port.
Note: LS2 and up engines, additional accessories and other injector types are subject to additional fees.
SUPPORTED LS PCM SERV CODES
- 09354896, 12200411, 12586242
SUPPORTED VORTEC PCM SERV CODES
- 09254896, 12200411, 12576106, 12586242, 12586243, 12597191, 12583560, 12583561, 12596679, 12589463
