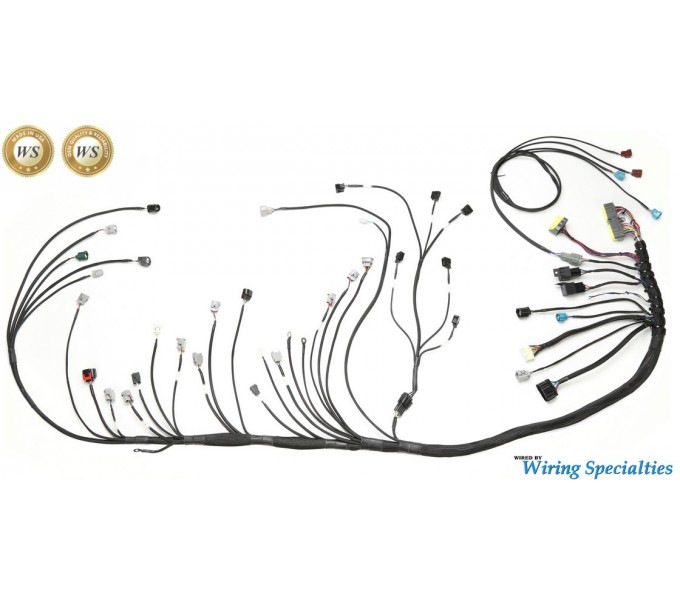

RB26DETT to Datsun 240Z Wiring Harness - PRO SERIES

PRO-SERIES HARNESS SPECS

• Easy plug and play install. Simply connect Ignition source wire, fuel pump wire and run the Battery cable to the starter.
• Point to Point continuity tested on every wire.
• Constructed using OEM connectors and seals.
• Made with high temp TXL wire (-40C to +125C operating temperature) with adhesive shrink tubing.
• Wrapped in lightweight nylon loom with -94C to +257C operating temperature.
• Includes built in charge harness and improved grounds.

PRO-SERIES HARNESS INCLUDES

• Fuse and relay blocks.
• Quick disconnect MAFS/AEM/Haltech/PFC Speed density extensions (change from MAFS TO AEM/Haltech in seconds).
• Coil harness sub-harness.
• Knock sensor sub-harness.
• Transmission harness with reverse and speed sensor wiring.
• Alternator charge cable.
• Nissan Diagnostics connector.
• Datsun Power and dash interface connectors.
• Fuse Block and Relay system installed for proper ECCS ON and OFF operation with ECU Memory retention.
• Fuel Pump output wire that connects directly to the pump or to existing switch.
• Power wire with appropriate fuses, battery power pick-up at the starter.
• Ignition input signal from ignition key.
• OUTPUT connections for ECU tachometer signal, check engine light, engine remp (Nissan dash signal) and alternator charge indicator.

Our Pro-Series is ideal for those looking for the best aesthetics, weight savings and reliability. Completely replace your old harness and forget about electrical gremlins
