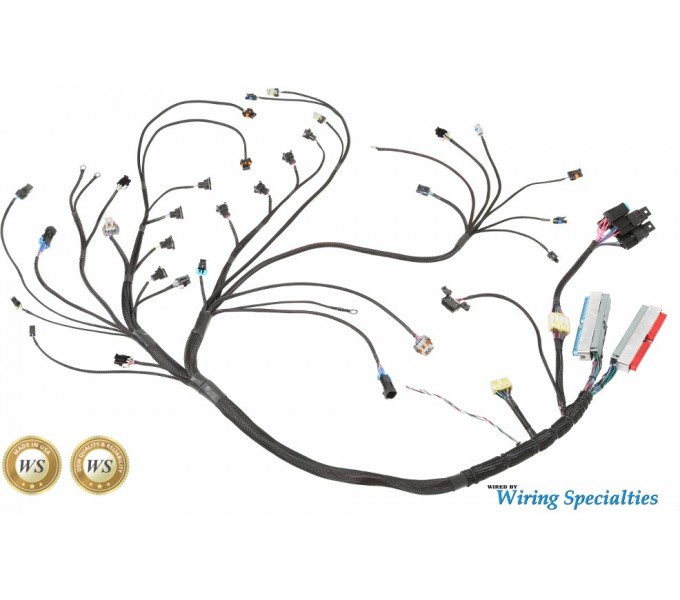

LS1 Wiring Harness for BMW E36 - PRO-SERIES
Plug and play ledningsnett for montering av LS1 motor i din BMW E36. Andre LS motorer må lages på bestilling, ta kontakt for pris.
Støtter følgende motorer:
- Alle LS1 fra 1999-2002 Camaro, Firebird, GTO, Corvette
- Alle Vortec motorer fra 1999-2007 (LM4, LM7, LQ4, LQ9, LR4, L33, L59)
- Støtter alle motorer med DRIVE BY CABLE og T-56 girkasse
Passer:
BMW 3 (E36) 316i 1993 - 1999
BMW 3 (E36) 318i 1995 - 2000
BMW 3 (E36) 320i 1991 - 1998
BMW 3 (E36) 323i 1991 - 1998
BMW 3 (E36) 325i 1991 - 1998
BMW 3 (E36) 328i 1991 - 1998
BMW 3 (E36) M3 1991 - 1999
Art.nr: 136046560
Type LS1 Motor
Type LS Girkasse
Aircondition
Flash tuning
Adaptere
Luftmengdemåler/MAP sensor
Oksygen sensor/lambda sonde
PRO-SERIES HARNESS SPECS
- Plug and play.
- Constructed using OEM connectors and seals.
- Made with high temp TXL wire (-40C to +125C operating temperature) with adhesive shrink tubing.
- Wrapped in lightweight nylon loom with -94C to +257C operating temperature.
- Includes built in charge harness and improved grounds.
- Retains OEM fans, wipers, oil pressure sensor and coolant sensor (requires oil pressure and coolant adapters).
- Works with OEM dash instruments gauge cluster.
Note: requires the BMW 25-pin fuse box connector to be sent in to complete the project.
Note: For proper A/C operation, a GM pressure sensor needs to be installed on the high-pressure line.
Note: Coolant and Oil sensor adapters retain the use of factory BMW (OBD1) Oil Pressure and Coolant Temp cluster functionality.
Use OBD1 Coolant Switch from E36 - BOSCH Part# 0280130026
Use OBD1 Oil Pressure Switch from E36 - BECK Part# 2011515
Note: LS2 and up engines, additional accessories and other injector types are subject to additional fees.
SUPPORTED LS PCM SERV CODES - 09354896, 12200411, 12586242
SUPPORTED VORTEC PCM SERV CODES - 09254896, 12200411, 12576106, 12586242, 12586243, 12597191, 12583560, 12583561, 12596679, 12589463
