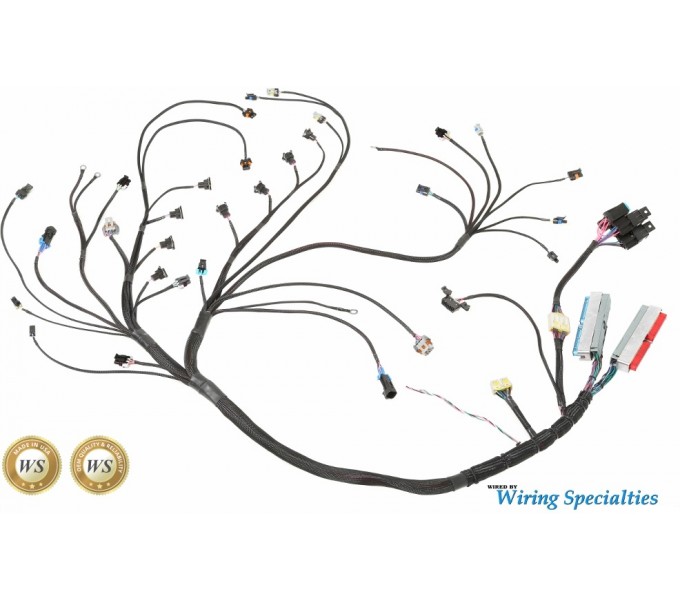

LS1 ledninsnett til Nissan 200SX S13

Plug and play ledningsnett for og montere en Chevrolet LS motor i Nissan 200SX S13

Passer følgende motorer:

  • Alle LS1 fra 1999-2002 Camaro, Firebird, 2004 GTO, Corvette
  • Alle Vortec motorer fra 1999-2007 (LM4, LM7, LQ4, LQ9, LR4, L33, L59)
  • Støtter motorer med DRIVE BY CABLE og T-56 transmission

Støtter følgende LS PCM koder:

  • 09354896, 12200411, 12586242

Søtter følgende VORTEC PCM koder

  • 09254896, 12200411, 12576106, 12586242, 12586243, 12597191, 12583560, 12583561, 12596679, 12589463


Passer:
Nissan 200SX (S13) CA18DET 1989 - 1994
Nissan 200SX (S13) SR20DET 1989 - 1994
Art.nr: 136046465
Type LS1 Motor
LS girkasse option
Interiørledningsnett
Original girkassse
Aircondition
Speedometer kalibrering
Flash tuning
Adaptere
Luftmengdemåler
Oksygen sensor/lambda sonde
12 221 kr
  • Plug and play.
  • No cores and additional wiring required.
  • Point to point tested on every wire.
  • Constructed using OEM connectors and seals.
  • Made with high temp TXL wire (-40C to +125C operating temperature) with adhesive shrink tubing.
  • Wrapped in lightweight nylon loom with -94C to +257C operating temperature.
    • Wiring for OEM fans, wipers, oil pressure sensor and coolant sensor (requires oil pressure and coolant adapters).
    • A/C Wiring is available as an option. Please note that adding A/C to an LS1 S13 is not easy and will require custom lines and sensor installation. Wiring Specialties will provide a wiring sub-harness needed for operating the A/C system ONLY.
    • Speeedometer calibration (requires SGI-5 unit).
    • OEM 200sx tachometer functionality.
    • Wiring and relays for Dual OEM LS fans.
    • Wiring for Oil pressure, alternator dummy light, reverse lights, reverse lockout and skip-shifts lockout.
    • Works with OEM dash instruments gauge cluster.
    • Built-in charge harness for alternator charging.
    • OBD2 Consult port.
    Note: Coolant and Oil sensor adapters retain the use of factory Nissan Oil Pressure and Coolant Temp cluster functionality. The adapters are also machined to support most aftermarket temperature and pressure gauges that require a 1/8"-27 thread pitch. Will require the use of a Nissan S13/S14 Oil and Temp sensors (1-wire). Note: LS2 and up engines, additional accessories and other injector types are subject to additional fees.
