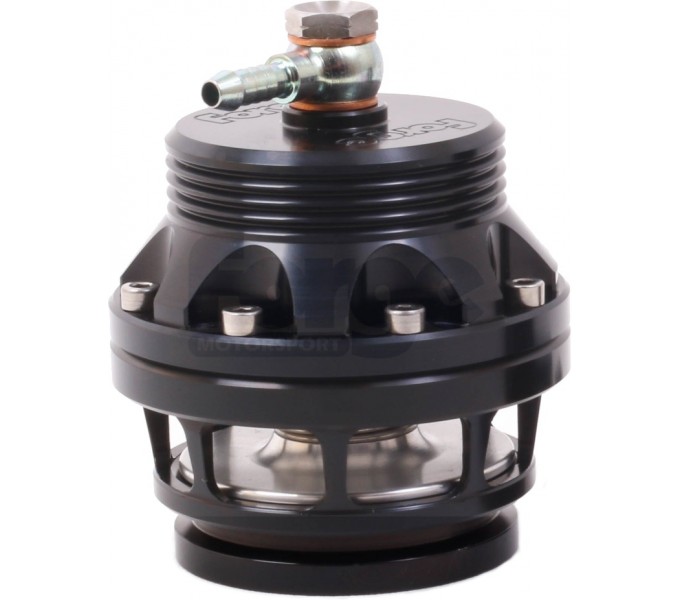

Forge 50mm Weld eller Clamp on dumpventil

This valve is the largest displacement valve that Forge have ever made! After a long trial period where we placed the valve on some of the hardest used cars around, we are proud to release it for sale. Featuring a 50mm (2") aluminium piston so that there are no issues with split diaphragms, we have not found the power handling limits of this valve yet!

The piston uses heat stabilised viton o-rings and high temperature Mobil 1 grease to ensure a long life with minimal wear and very long service intervals. As tested on our own Forge Golf Mk1 Berg Cup car, an incredible 9.5 second ¼ mile Tigra, numerous Time Attack cars and a 1500bhp Nissan GTR, the proof of its ability to handle high boost and high power applications has been proven. The springs fitted to the valve has been painstakingly developed to allow a range of boost from 1 bar (14.7 psi) right up to 3 bar (43 psi) without the need to change the spring. The vacuum barb is a huge 6mm ID and fully rotatable 360 degrees to suit any installation.

This valve is suitable for custom installations only, and cannot be installed on a silicon hose. You can choose the option of either a screw on fitting, or a v-band fitting with the appropriate adaptors - these will be included with your valve, which you can get welded to any aluminium pipework in your installation, ideally as close to the throttle body as possible.
